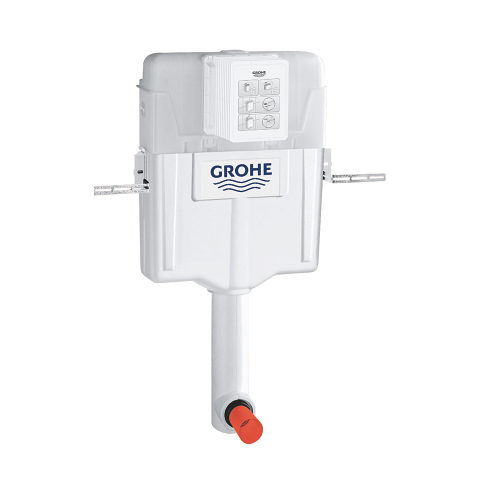

WC concealed cistern
Product main features
- factory set 6 l and 3 l
- pneumatic discharge valve offering 2 modes of operation: dual flush or single flush
- connection from left/right/back or top
- Insulated against condensation
- ½" water supply connection including integrated angle valve and push fit flexible hose union
- inspection shaft for vertical or horizontal use allows for flush plate to be installed vertically or horizontally.
- flush pipe insulated against condensation
- fixing brackets
- for mounting of small flush plates please order revision shaft 40 911 000 (sold separately)
- Including WRAS approved filling valve
Technical Product Information
CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Inspection shaft | 66783000 |
| 2 | Filling valve | 42648000 |
| 3 | Membrane | 4265000M |
| 4 | Connecting hose | 42233000 |
| 4.1 | O-Ring | 0319100M |
| 5 | Dual Flush discharge valve AV1 | 42320000 |
| 5.1 | Extension for overflow pipe | 42313000 |
| 5.2 | Pneumatic hose | 42319000 |
| 5.3 | Sealing washer | 42310000 |
| 6 | Valve seat | 42599000 |
| 7 | Flush pipe, concealed | 43908000 |
| 7.1 | O-Ring | 4388000M |
| 8 | Water connection | 48561000 |
| 9 | 4.5 l adapter for GD2 | 42333000* |
| 10 | Flow restrictor | 42300000* |
