Euphoria SmartControl System 260 Mono Shower system with bath thermostat for wall mounting

The GROHE Euphoria SmartControl 260 Shower system for the bathtub is the complete package
Smooth, responsive operation, user-friendly features and flawless styling make for an enhanced showering experience. GROHE SmartControl technology lets you choose between or combine head shower, hand shower and bath inlet, and to vary the water flow via the push-turn control. Saving water couldn’t be simpler – just switch the flow rate from full to EcoJoy. The 260mm swivel head shower offers a choice of three distinct sprays: Jet Spray is strong and concentrated, perfect for rinsing after shampooing; SmartRain Spray is opened out to give an invigorating way to destress; and the immersive Rain Spray uses all the head’s nozzles for all-over coverage. Select your chosen spray pattern by simply turning the knob in the centre of the spray head. The 110mm hand shower lets you choose from three contrasting spray patterns – the relaxing Rain, the eco-friendly SmartRain and the stimulating Massage spray. GROHE DreamSpray technology means each of the head’s nozzles provides an identical flow, across all spray options. Cleaning the SpeedClean silicone nozzles is effortless – they will be free of limescale after just a wipe. Thanks to GROHE TurboStat you’ll enjoy a constant water temperature for your entire shower. GROHE SafeStop allows you to cap the temperature at 38˚C, while SafeStop Plus gives you the further option of a 43˚C cap. An additional safety feature is GROHE CoolTouch, which guarantees that the exposed thermostat’s surface won’t become so hot as to be untouchable. There is also the practical convenience of the built-in EasyReach tray for keeping your toiletries where you need them. The long-lasting, gleaming GROHE StarLight chrome finish emphasizes the whole set’s dazzling good looks. And fitting is quick and easy with GROHE QuickFix: the upper bracket adjusts allowing existing drilling holes to be reused.
Product main features
- Consisting of:
- horizontal swivable 450 mm projection shower arm
- upper bracket adjustable for minimal adaption to existing drilling holes
- exposed SmartControl bath thermostat
- allows change between:
- head shower Euphoria 260 (26 455)
- 3 spray patterns:
- Rain, SmartRain, Jet
- maximum flow rate (at 3 bar): 20 l/min
- with ball joint
- rotation angle ± 15°
- bath inlet
- hand shower Euphoria 110 Massage, spray plate white (27 221 001)
- 3 spray patterns:
- Rain, SmartRain, Massage
- maximum flow rate (at 3 bar): 16 l/min
- adjustable height via gliding element
- Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388 000)
- GROHE DreamSpray perfect spray pattern
- GROHE Long-Life finish
- GROHE CoolTouch prevents scalding on hot surfaces
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE ProGrip with knurl structure
- GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C included
- GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow
- integrated GROHE EasyReach shower tray
- SpeedClean anti-limescale system
- Inner WaterGuide for a longer life
- TwistStop preventing the hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 7 l/min.
Technical Product Information
CAD Data

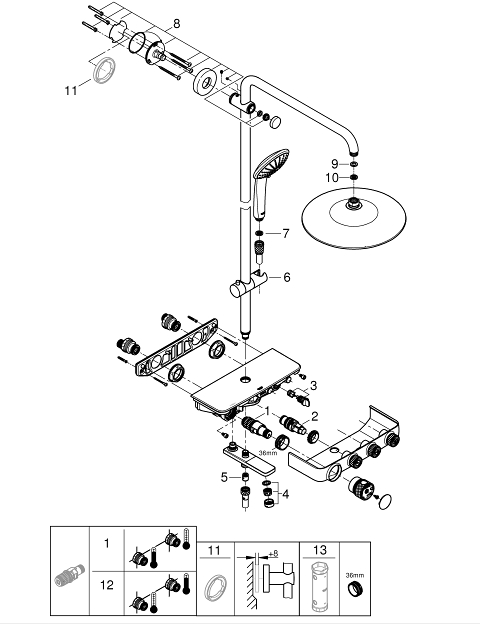

Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Thermostatic compact cartridge 1/2" | 47439000 |
2 | Cartridge | 48297000 |
3 | Non-return valve | 49069000 |
4 | Flow restrictor | 13941000 |
5 | Non-return valve | 08565000 |
6 | Sliding piece | 48177000 |
7 | Strainer | 0700200M |
8 | Outlet shower holder | 48279000 |
9 | Fibre seal dia. Ø 18,5 x Ø 12 x 2 | 0138900M |
10 | Strainer | 48007000 |
11 | Spacer | 27180000* |
12 | GROHE TurboStat cartridge 1/2" | 47175000* |
13 | Socket Spanner | 49059000* |
