Servo-set
Product Number
37078PI0
EAN
4005176160783
Colour
matt chrome/chrome
£
88.72
RRP incl. VAT
Product main features

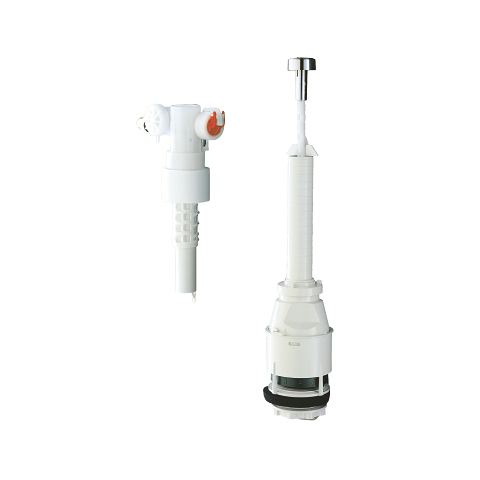

- retrofit unit for close-coupled flushing cisterns
- connection from the side
- with filling valve, servo discharge valve
- interruptible flush cycle
- fixing set with 100 mm screws and cellular rubber joint Ø 100 mm
- centring for filling and discharge valve when having larger bore holes
- GROHE Long-Life finish
- **) max. shortening 100 mm
Technical Product Information
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Filling valve | 37095000 |
| 1.1 | Lever | 43734000 |
| 1.1.1 | Sealing washer | 4377000M |
| 1.2 | Valve head | 43536000 |
| 1.3 | Membrane | 4375800M |
| 1.4 | Screw cap | 43735000 |
| 1.5 | Valve FLOAT, 5 pcs.. | 4379100M |
| 1.6 | Set of seals | 43722000* |
| 2 | Push button and escutcheon | 37117PI0 |
| 3 | Push bar 350 mm | 43535000 |
| 4 | Pop-up rod | 43540000 |
| 5 | Servo discharge valve | 43486000 |
| 5.1 | Outlet piston | 43544000 |
| 5.1.1 | Sealing washer | 43808000 |
| 6 | Seat | 43533000 |
| 7 | Sealing washer | 43745000 |
| 8 | Nut | 43311000 |
| 9 | Fastening set | 43741000 |
