Flushing cistern for WC
Product main features
- 6 l / 3 l flush
- 0.82 m finished installation height
- including WRAS approved filling valve
- front/top actuation
- water supply from left/right or back
- Insulated against condensation
- 415 x 140 x 360 mm
- fixing brackets
- flush pipe 37 489 000
- without wall plate/actuation
- GROHE Water Saving - Less water, perfect flow
Technical Product Information
CAD Data

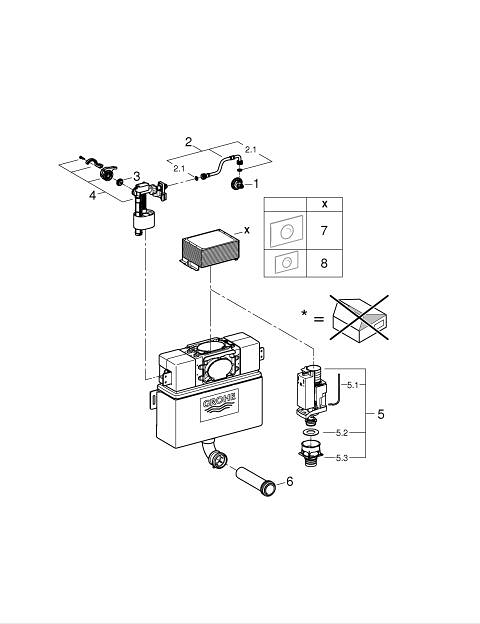

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Water connection | 48561000 |
| 2 | Overflow Sleeve | 43325000 |
| 2.1 | O-Ring | 0319100M |
| 3 | Membrane | 4265000M |
| 4 | Filling valve | 42649000 |
| 5 | Discharge valve AV1 complete | 42314000 |
| 5.1 | Pneumatic hose | 42319000 |
| 5.2 | Sealing washer | 42310000 |
| 5.3 | Valve seat for GD2 | 42315000 |
| 6 | Flush pipe extension | 37489000 |
| 7 | inspection shaft for flushing cistern | 42326000 |
| 8 | Inspection shaft for small flush plates | 40950000* |
