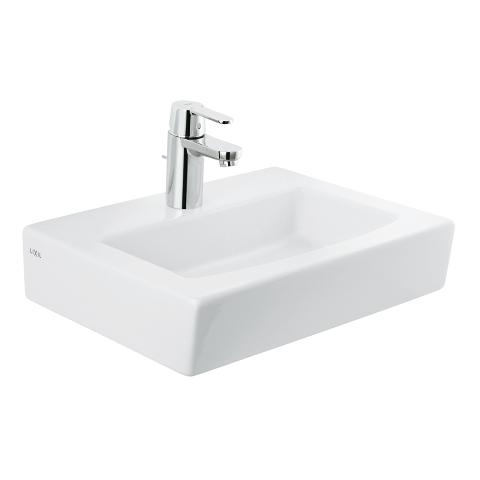

Bundle hand wash basin Square 45
Product Number
37439000
EAN
4005176941092
Colour
Chrome
Product main features
- Get single-lever basin mixer, 1/2" (32 883 000)
- monobloc installation
- GROHE SilkMove 35 mm ceramic cartridge
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- adjustable flow rate limiter
- mousseur
- 5.7 l economy mousseur included
- pop-up waste set 1 1/4"
flexible connection hoses
- GROHE FastFixation installation system
- noise classification 1 in accordance with DIN4109
- Hand wash basin square, EN 14688 CL 20
- sanitary ware
- 1 taphole in the middle; round overflow, placed on the opposite rim of basin
- brand: LIXIL

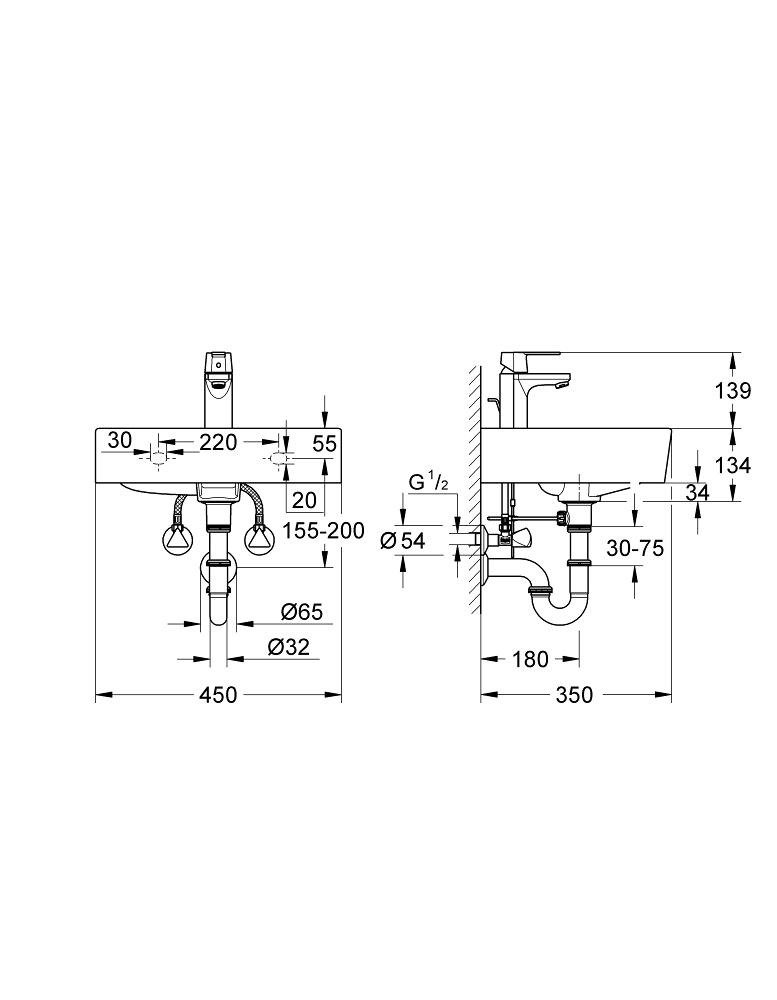

- dimensions: width 450 mm, depth 349 mm, total height 134 mm
- weight: 10 kg
- fixation: hanger bolts
- volume basin:\t2.5 l
- Mounting set
- brand: TOX
- hanger bolts M10 x 140
- Angle valve 1/2" (22 939 000)
- TDL handle
- marking: neutral
- with compression nut
- for copper pipe Ø 10 mm
- escutcheon
- GROHE Long-Life finish
- Trap
- for basins
- wall connection
- escutcheon
Technical Product Information
CAD Data

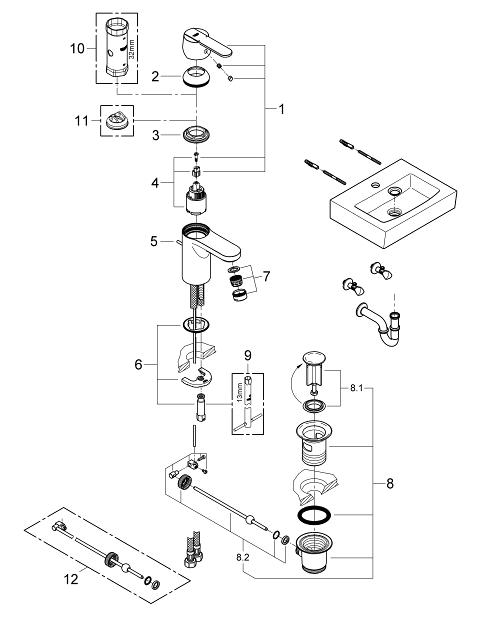

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46709000 |
| 2 | Shield for cross handle | 46492000 |
| 3 | Screw coupling | 46460000 |
| 4 | Cartridge | 46374000 |
| 5 | Pop-up rod | 46739000 |
| 6 | Shank mounting kit | 46671000 |
| 7 | Flow restrictor | 48159000 |
| 8 | Pop-up waste set 1 1/4" | 28910000 |
| 8.1 | Chrome bath plug | 07182000 |
| 8.2 | Eccentric rod | 07052000 |
| 9 | Mounting wrench | 19017000* |
| 10 | Socket Spanner | 19332000* |
| 11 | Temperature limiter | 46375000* |
| 12 | Eccentric rod | 07341000* |
