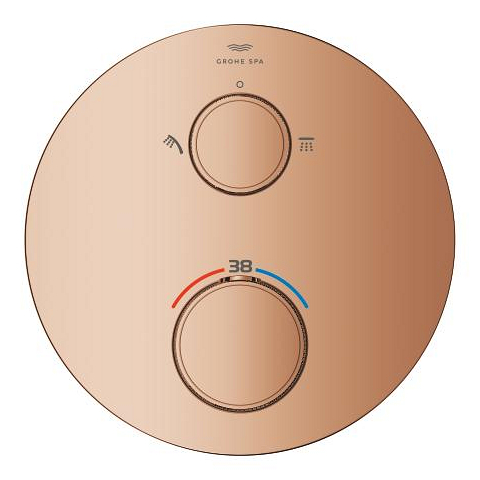

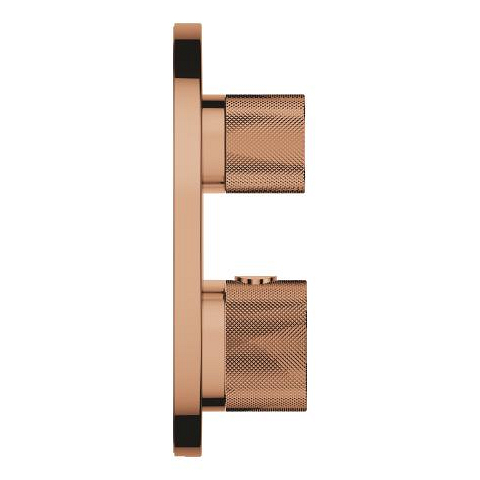

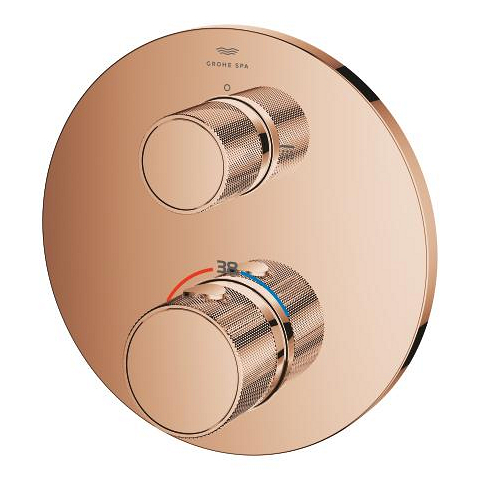

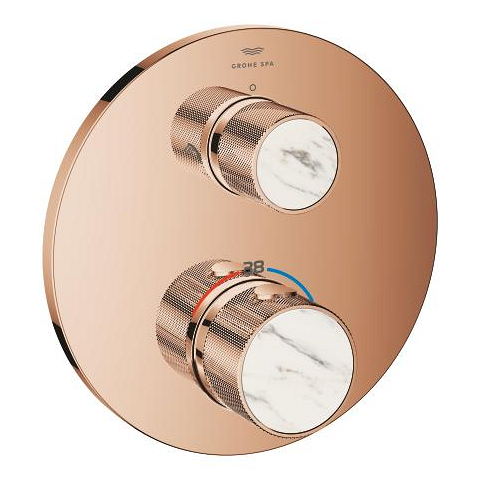

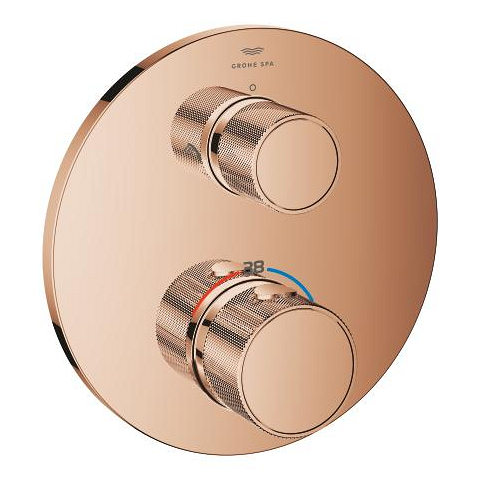

Atrio Private Collection Thermostatic shower mixer for 2 outlets with integrated shut off/diverter valve with knob
With the GROHE Atrio Private Collection thermostatic shower mixer for 2 outlets in modern Warm Sunset, you can give your bathroom a very personal touch by customising the control elements.
Discover a refuge of grace and elegance with the Atrio Private Collection – the perfect symbiosis of timeless aesthetics, state-of-the-art technology and the highest quality standards, made in Germany. In addition to its delicate design, consisting of clear lines and rounded shapes, this exquisite GROHE SPA series is characterised by its wide range of combinable colours and materials, offering maximum individuality. This PVD coating makes the elegant Warm Sunset surface particularly hard-wearing and scratch-resistant for a long service life. With GROHE's precise thermostat technology, you always shower at your chosen temperature, even if the water pressure changes. Water and energy consumption are also reduced. The temperature regulator has a protective function that prevents scalding. The water temperature can only be set higher than 38 °C by unlocking the button. A second lock (43 or 46 °C) can be installed as an option. This practical volume control gives you full control: simply turn it and set the desired amount and source of water. Opt for the following button actuation inserts – 48466000 (White Attica Caesarstone) or 48467000 (Vanilla Noir Caesarstone). The matching concealed body – GROHE Rapid SmartBox 35600000 or 35604000 – is available separately. GROHE Atrio Private Collection – for a personal touch in the bathroom.
Product main features
- set for final installation for
- GROHE Rapido SmartBox 35 600/35 604
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE Long-Life finish
- wall escutcheon with GROHE FastFixation(covered escutcheon- and shaft sealing, covered fixing)
- metal escutcheon, retroactively 6° adjustable
- printed head and hand shower symbol
- GROHE SafeStop safety button at 38°C(calibration required)
- GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
- GROHE AquaDimmer, integrated shut off/diverter valve
- knobs with metal inlay

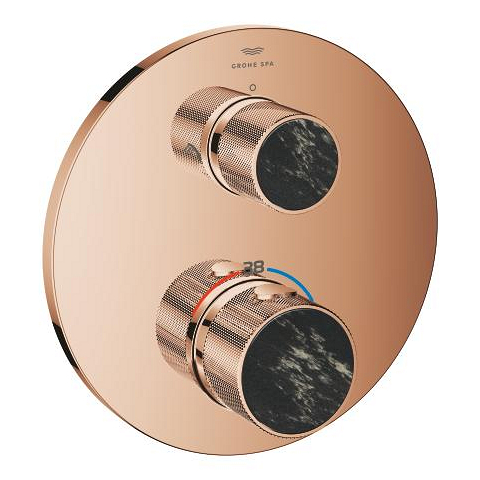

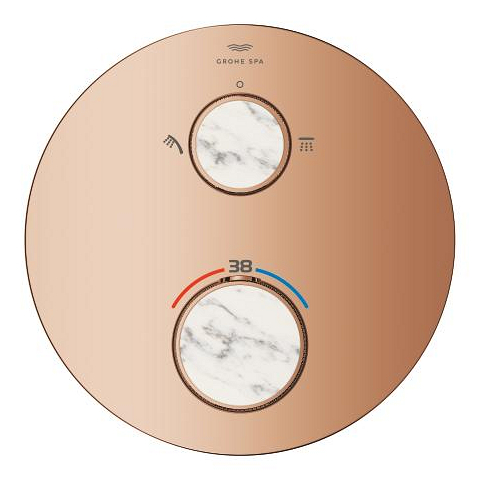

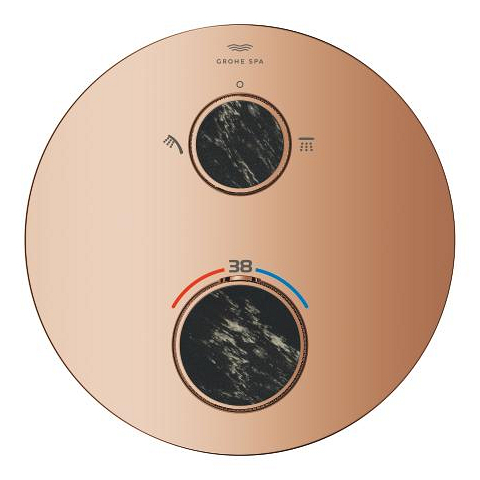

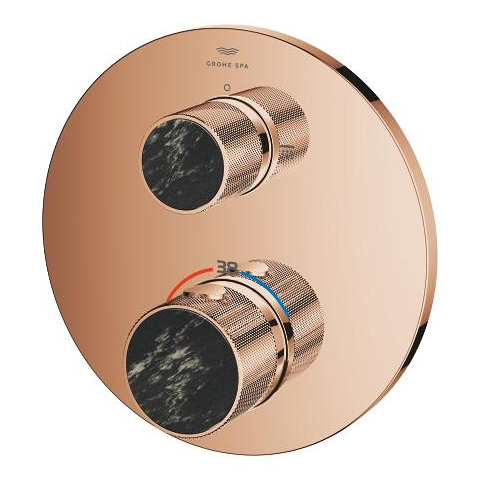

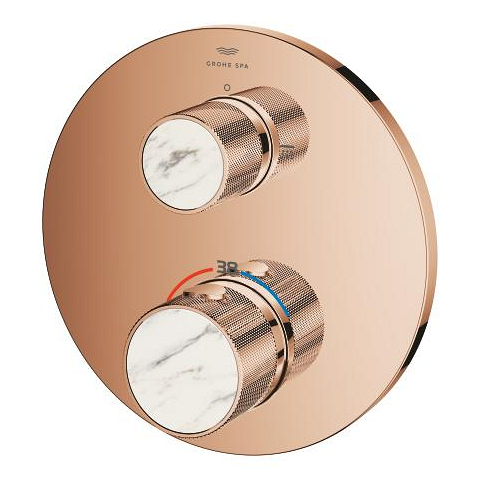

- can be combined with 48 466 000 or 48 467 000
- without roughing-in set 35 600/35 604 (please order separately)
- flow performance: outlet B = 27 l/min outlet C = 30 l/min
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Mounting plate | 49080000 |
2 | Handle | 101307DA00 |
2.1 | Shield for cross handle | 101308DA00 |
3 | Escutcheon | 49246DA0 |
4 | Handle | 101301DA00 |
4.1 | Shield for cross handle | 101277DA00 |
5 | Aquadimmer | 49084000 |
6 | Thermostatic compact cartridge 3/4" | 49028000 |
7 | Non-return valve | 49085000 |
8 | Sealing washer | 48360000 |
9 | GROHE TurboStat cartridge 3/4" | 49003000* |
10 | Service stops | 1405300M* |
11 | Socket Spanner | 49059000* |
12 | Backflow protection combination (DIN-EN1717) | 14055000* |
13 | Universal extension set 2-handle thermostats, 25 mm | 14058000* |
