GROHE SPA

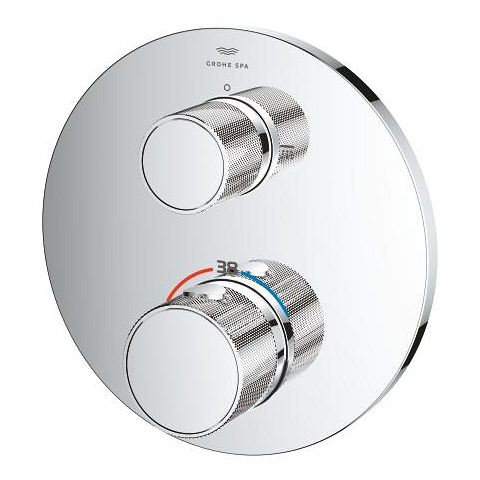

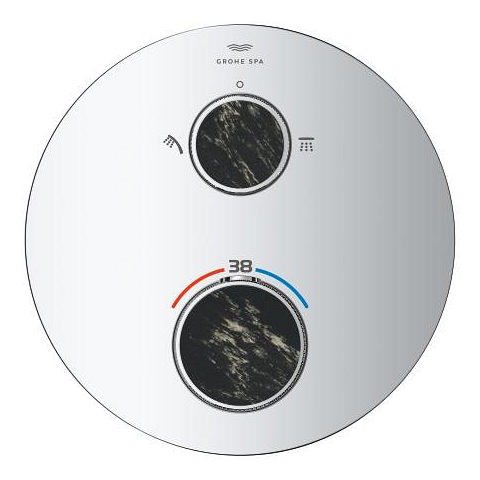

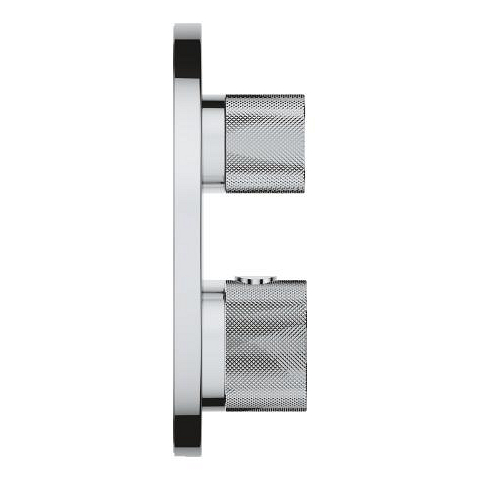

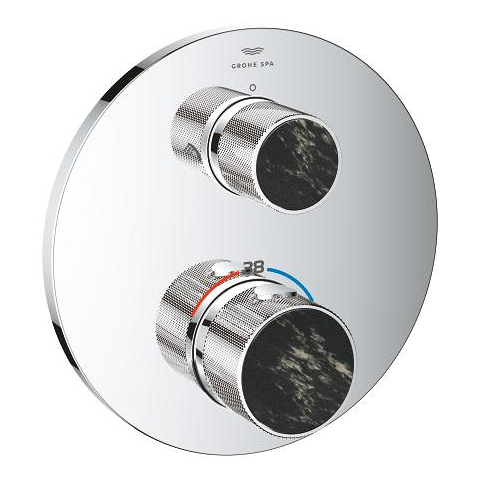

Atrio Private Collection Thermostatic shower mixer for 2 outlets with integrated shut off/diverter valve with knob
With the GROHE Atrio Private Collection thermostatic shower mixer for 2 outlets in modern chrome, you can give your bathroom a very personal touch by customising the control elements.
Discover a refuge of grace and elegance with the Atrio Private Collection – the perfect symbiosis of timeless aesthetics, state-of-the-art technology and the highest quality standards, made in Germany. In addition to its delicate design, consisting of clear lines and rounded shapes, this exquisite GROHE SPA series is characterised by its wide range of combinable colours and materials, offering maximum individuality. The elegant chrome not only gives the product a high-quality appearance, but also makes it particularly robust and easy to clean. Experience constant shower temperatures, even with sudden changes in water pressure, thanks to GROHE's precise thermostat technology, which also saves water and energy. Safety is a top priority for us! The temperature regulator has a protective function that prevents scalding: The water temperature can only be set higher than 38 °C by unlocking the button. A second lock (43 or 46 °C) can be installed as an option. Thanks to the volume control, you can quickly and easily regulate both the amount of water and the type of water source, whether hand or head shower. Opt for the following button actuation inserts – 48466000 (White Attica Caesarstone) or 48467000 (Vanilla Noir Caesarstone). The matching concealed body – GROHE Rapid SmartBox 35600000 or 35604000 – is available separately. GROHE Atrio Private Collection – for a personal touch in the bathroom.
Product main features
- set for final installation for
- GROHE Rapido SmartBox 35 600/35 604
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE Long-Life finish
- wall escutcheon with GROHE FastFixation(covered escutcheon- and shaft sealing, covered fixing)
- metal escutcheon, retroactively 6° adjustable
- printed head and hand shower symbol
- GROHE SafeStop safety button at 38°C(calibration required)
- GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
- GROHE AquaDimmer, integrated shut off/diverter valve
- knobs with metal inlay
- can be combined with 48 466 000 or 48 467 000
- without roughing-in set 35 600/35 604 (please order separately)
- flow performance: outlet B = 27 l/min outlet C = 30 l/min
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Mounting plate | 49080000 |
2 | Handle | 1013070000 |
2.1 | Shield for cross handle | 1013080000 |
3 | Escutcheon | 49246000 |
4 | Handle | 1013010000 |
4.1 | Shield for cross handle | 1012770000 |
5 | Aquadimmer | 49084000 |
6 | Thermostatic compact cartridge 3/4" | 49028000 |
7 | Non-return valve | 49085000 |
8 | Sealing washer | 48360000 |
9 | GROHE TurboStat cartridge 3/4" | 49003000* |
10 | Service stops | 1405300M* |
11 | Socket Spanner | 49059000* |
12 | Backflow protection combination (DIN-EN1717) | 14055000* |
13 | Universal extension set 2-handle thermostats, 25 mm | 14058000* |
