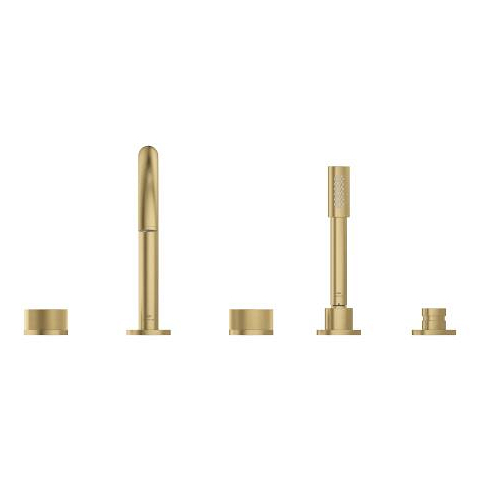

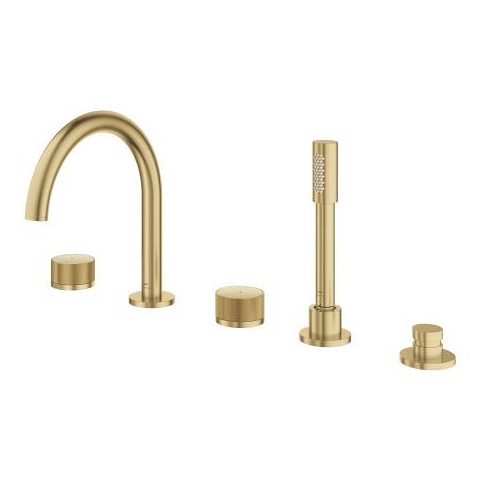

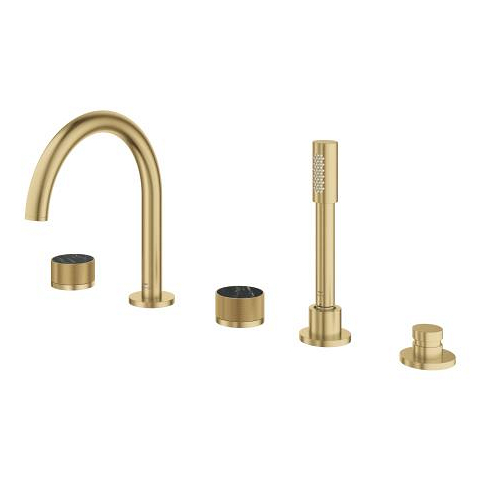

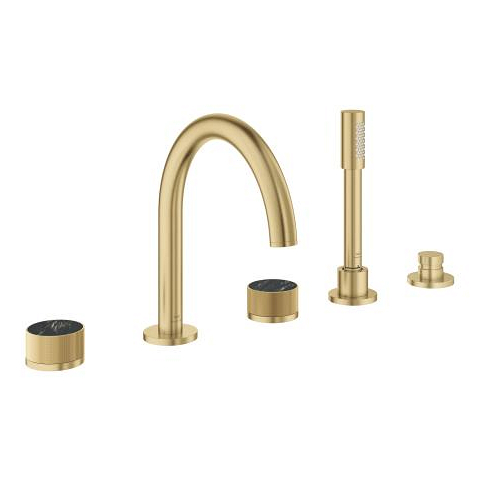

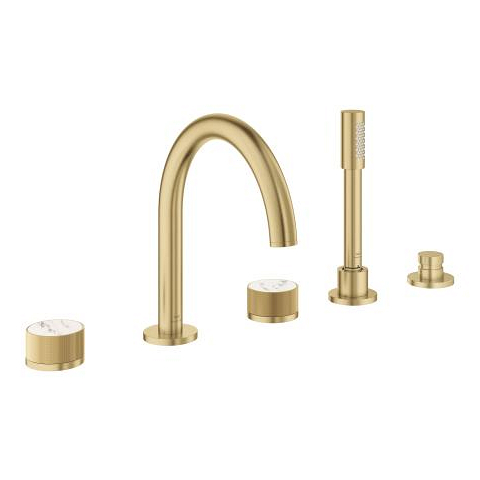

Atrio Private Collection 5-hole bath/shower combination

Individualise your bathroom with the GROHE Atrio Private Collection 5-hole bath combination in elegant Brushed Cool Sunrise by selecting the control elements according to your preferences.
Discover a refuge of grace and elegance with the Atrio Private Collection – the perfect symbiosis of timeless aesthetics, state-of-the-art technology and the highest quality standards, made in Germany. In addition to its delicate design, consisting of clear lines and rounded shapes, this exquisite GROHE SPA series is characterised by its wide range of combinable colours and materials, offering maximum individuality. The GROHE Atrio Private Collection 5-hole bath combination includes an elegantly curved bath spout with mousseur, a diverter for bath or shower, 2 button controls, a water-saving hand shower with a flow rate of 6.6 litres per minute and a long shower hose with a length of 2,000 mm. With the durable and robust PVD coating, the stylish Brushed Cool Sunrise surface is perfectly protected from scratches and dirt. You have the choice of equipping this mixer tap with the following inserts for button actuation: 48462000 (White Attica Caesarstone) or 48463000 (Vanilla Noir Caesarstone) This bath combination is compatible with the GROHE base frame for installation under tiled surround (29037002). GROHE Atrio Private Collection – for a personal touch in the bathroom.
Product main features
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- Consisting of:
- pre-assembled spout fixing
- knobs with inlay, can be combined with 48 462 000 or 48 463 000
- bath spout with mousseur and diverter bath/shower
- hand shower Rainshower Aqua Stick 6.5 l/min
- shower hose 2000 mm
flexible connection hoses
- connection for shower hose
- protected against backflow
- can be used with 29 037 002
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Handle pair blue/red | 101349GN00 |
1.1 | cap | 101348GN00 |
2 | Diverter knob | 48411GN0 |
3 | Diverter | 45443000 |
3.1 | O-Ring Ø6 x Ø2 | 0128300M |
3.2 | O-Ring | 0120500M |
4 | Repl.kit f.shank fastening 3/4" | 45444000 |
5 | Non-return valve | 08565000 |
6 | Connecting hose | 07300000 |
7 | Metal hose | 28146000 |
8 | Compression spring | 00869000 |
9 | taper nut | 08864GN0 |
10 | Strainer | 0700200M |
11 | Ceramic headpart 3/4", 180° | 45887000 |
12 | renewable seat set 3/4" | 45345000 |
13 | Connecting hose | 48019000 |
14 | Connecting hose | 48018000 |
15 | spout | 101350GN00 |
15.1 | Flow restrictor | 13926000 |
16 | Ceramic headpart 3/4", 180° | 45888000 |
17 | Inlays made from White Attica Caesarstone material | 48462000* |
18 | Inlays made from Vanilla Noir Caesarstone material | 48463000* |
19 | Socket Spanner | 19332000* |
Products and accessories for the installation
