GROHE SPA

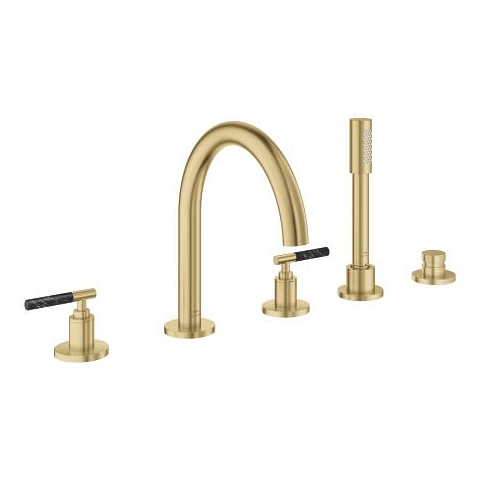

Atrio Private Collection 5-hole bath/shower combination
brushed cool sunrise

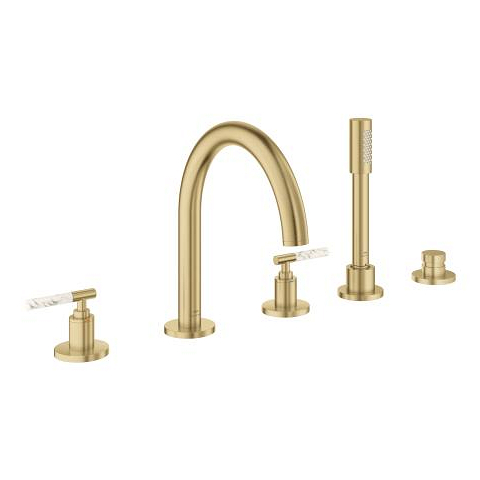

Individualise your bathroom with the GROHE Atrio Private Collection 5-hole bath combination in elegant Brushed Cool Sunrise by selecting the control elements according to your preferences.
With the Atrio Private Collection, you will experience a world of elegance and beauty – a symbiosis of timeless aesthetics, advanced technology and the highest quality, produced in Germany. This series from the premium GROHE SPA range impresses with its delicate design with clear lines and rounded shapes and offers a wide selection of colours and materials for individual combination options. The GROHE Atrio Private Collection 5-hole bath combination consists of a bath spout with mousseur, diverter for bath and shower, water-saving hand shower (6.6 l/min) and 2,000 mm shower hose. With the hard-wearing PVD coating, the elegant Brushed Cool Sunrise surface is optimally protected against scratches and wear. Customise your mixer tap with the lever handles in Brushed Cool Sunrise – you can choose from 48464GN0 (White Attica Caesarstone), 48465GN0 (Vanilla Noir Caesarstone) and 48651GN0 (knurled structure). This bath combination is compatible with the GROHE base frame for installation under tiled surround (29037002). GROHE Atrio Private Collection – for a personal touch in the bathroom.
Product main features
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- Consisting of:
- pre-assembled spout fixing
- bath spout with mousseur and diverter bath/shower
- hand shower Rainshower Aqua Stick 6.5 l/min
- shower hose 2000 mm
flexible connection hoses
- connection for shower hose
- protected against backflow
- for stick handles

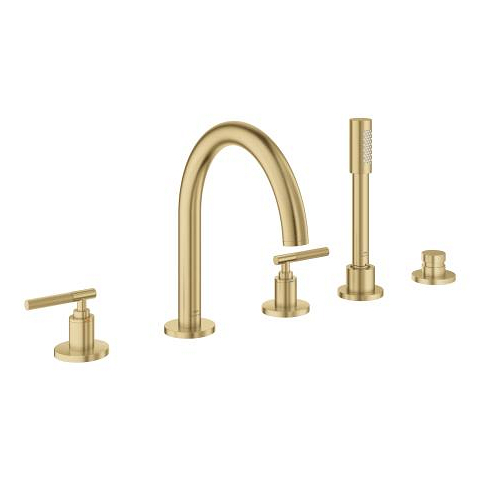

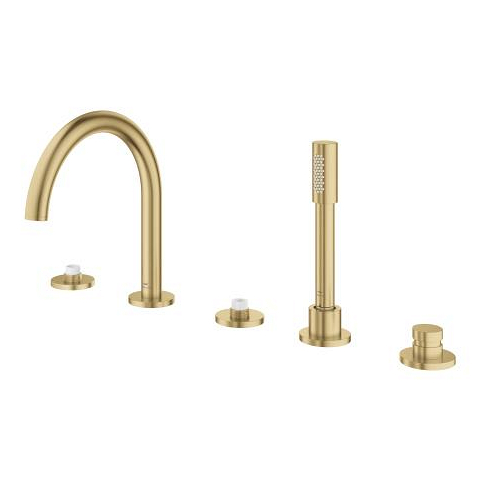

- to be combined with stick sets 48 464, 48 465 or 48 651, please order separately
- can be used with 29 037 002
Technical Product Information
CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Diverter knob | 48411GN0 |
| 2 | Diverter | 45443000 |
| 2.1 | O-Ring Ø6 x Ø2 | 0128300M |
| 2.2 | O-Ring | 0120500M |
| 3 | Repl.kit f.shank fastening 3/4" | 45444000 |
| 4 | Non-return valve | 08565000 |
| 5 | Connecting hose | 07300000 |
| 6 | Metal hose | 28146000 |
| 7 | Compression spring | 00869000 |
| 8 | taper nut | 08864GN0 |
| 9 | Strainer | 0700200M |
| 10 | Ceramic headpart 3/4", 180° | 45887000 |
| 11 | renewable seat set 3/4" | 45345000 |
| 12 | Connecting hose | 48019000 |
| 13 | Connecting hose | 48018000 |
| 14 | spout | 101350GN00 |
| 14.1 | Flow restrictor | 13926000 |
| 15 | Ceramic headpart 3/4", 180° | 45888000 |

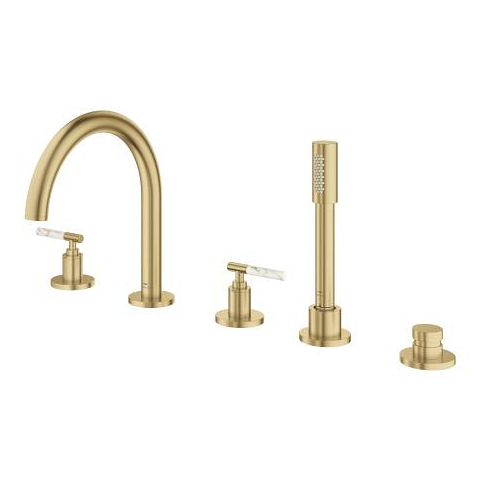

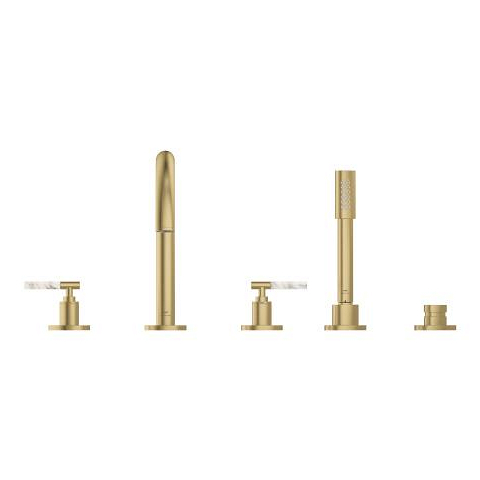

| 16 | Sticks made from White Attica Caesarstone material | 48464GN0* |

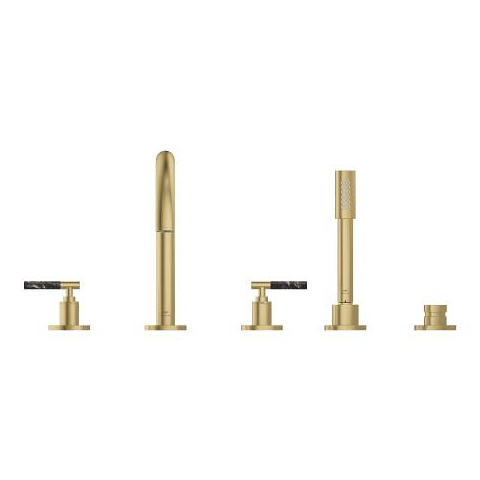

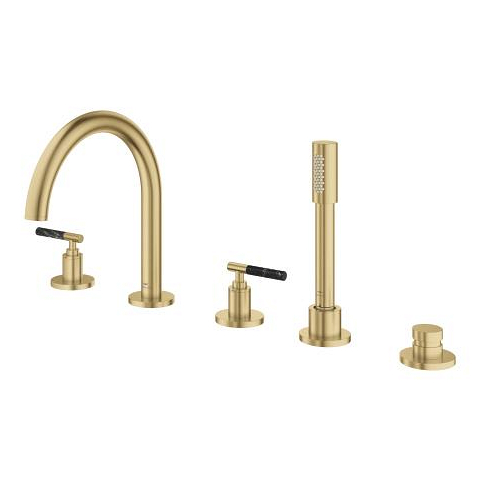

| 17 | Sticks made from Vanilla Noir Caesarstone material | 48465GN0* |

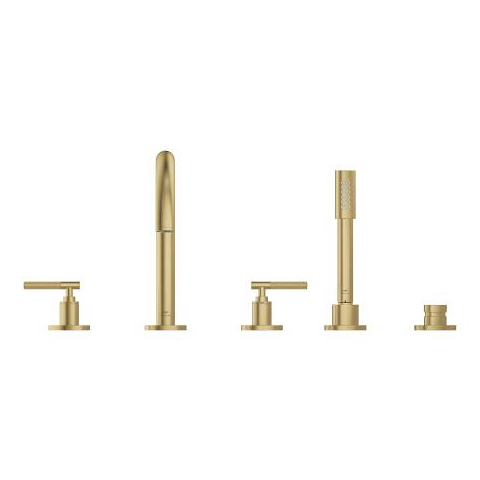

| 18 | Knurled sticks | 48651GN0* |
| 19 | escutcheon | 101351GN00* |
| 20 | Handle pair blue/red | 101349GN00* |
| 21 | Inlays made from White Attica Caesarstone material | 48462000* |
| 22 | Inlays made from Vanilla Noir Caesarstone material | 48463000* |
| 23 | Socket Spanner | 19332000* |
