GROHE SPA

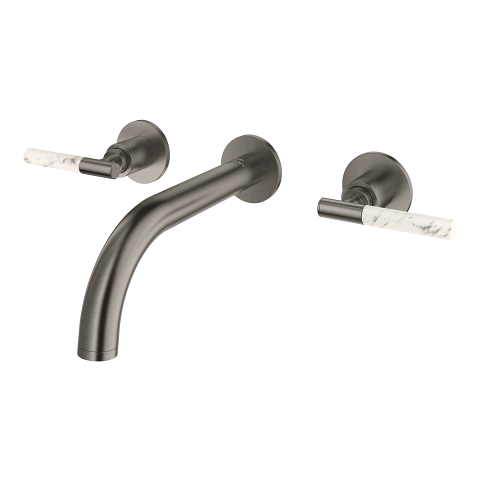

Atrio Private Collection 3-hole basin mixer M-Size

The GROHE Atrio Private Collection 3-hole basin mixer in M-size in stylish Brushed Hard Graphite – choose the control elements to suit your taste and give your bathroom a personal touch!
Immerse yourself in a world of elegance and beauty with the GROHE Atrio Private Collection, part of our exclusive SPA portfolio – combining timeless aesthetics, the latest technology and the highest quality, manufactured in Germany. With the hard-wearing PVD coating, the elegant Brushed Hard Graphite surface is optimally protected against scratches and wear. The GROHE Atrio Private Collection 3-hole basin mixer in M-size not only impresses with its external design, but also with its inner values. With high-quality ceramic headparts, it offers smooth and stepless operation and at the same time ensures environmentally friendly water consumption of just 5 l/min at 3 bar – without compromising on performance. The projection of the spout is 180 mm. Choose from three different lever handles in Brushed Hard Graphite for your new mixer tap: 48458AL0 (White Attica Caesarstone), 48459AL0 (Vanilla Noir Caesarstone) and 48646AL0 (knurled structure). To attach the 3-hole basin mixer in M-size to the wall, you need the matching GROHE concealed body (29025002). GROHE Atrio Private Collection – for a personal touch in the bathroom.
Product main features
- wall mounted
- set for final installation for
- 29 025 002
- valves hot/cold with headparts 1/2" - 90°
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
- centre distance 200 mm
- projection 180 mm
- for stick handles
- to be combined with stick sets 48 458, 48 459 or 48 646, please order separately
- without roughing-in set 29 025 002 (please order separately)
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | union connection | 1013459990 |
2 | Biflo spout | 101344AL00 |
2.1 | Flow straightener | 48408000 |
3 | Extension | 1013469990 |
4 | Escutcheon | 101343AL00 |
5 | Decorative ring | 101296AL00 |
6 | Shield for cross handle | 101300AL00 |
7 | Handle | 101347AL00* |
8 | Knurled sticks | 48646AL0* |
9 | Inlays made from White Attica Caesarstone material | 48460000* |
10 | Inlays made from Vanilla Noir Caesarstone material | 48461000* |
Products and accessories for the installation
Service Center
GROHE Limited
World Business Centre 2
Newall Road
London Heathrow Airport
Hounslow
Middlesex
TW6 2SF
Customer service hours
Opening days | Opening hours |
---|---|
Monday - Wednesday | 08:30 - 12:30 13:30 - 17:00 |
Thursday - Friday | 08:30 - 12:30 13:30 - 16:00 |
With GROHE SPA we curate only the most exclusive and luxurious products to create exquisite places of retreat. Versatile customisation options transform the bathroom into a home spa, impeccably tailored to individual preferences.
Discover all GROHE SPA assortment
