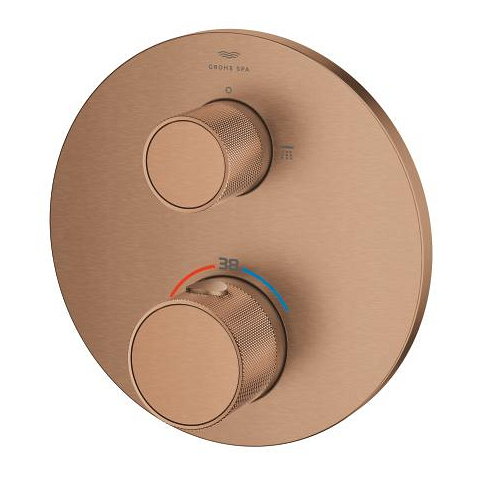

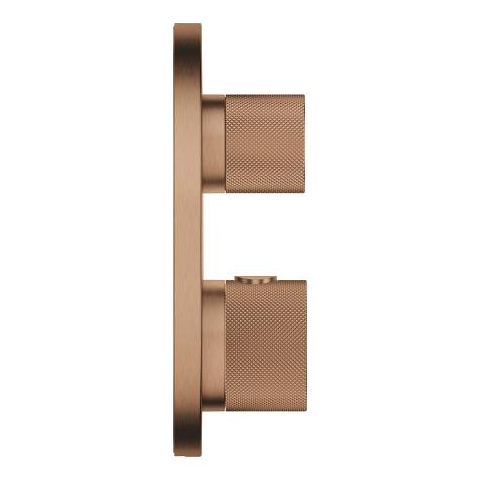

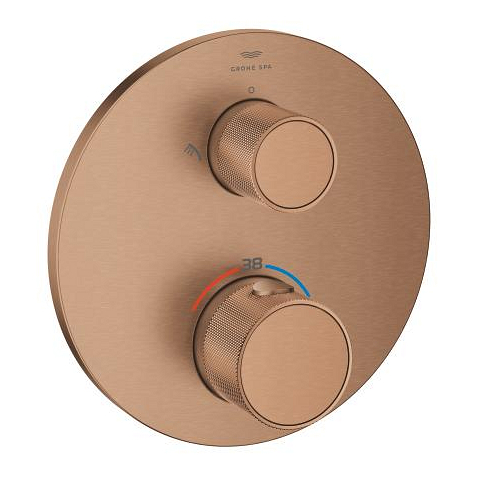

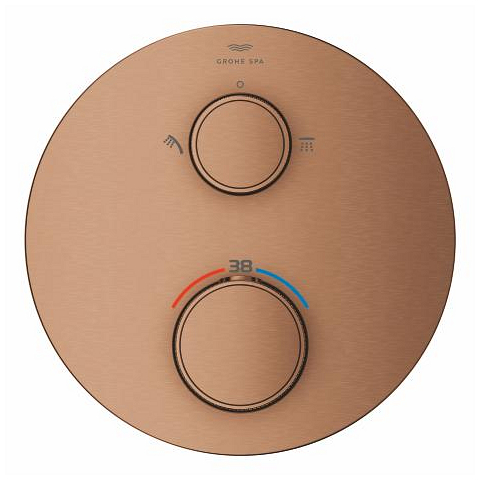

Atrio Private Collection Thermostatic shower mixer for 2 outlets with integrated shut off/diverter valve with knob

The GROHE Atrio Private Collection thermostatic shower mixer for 2 outlets in stylish Brushed Warm Sunset – choose the control elements to suit your taste and give your bathroom a personal touch!
Discover a refuge of grace and elegance with the Atrio Private Collection – the perfect symbiosis of timeless aesthetics, state-of-the-art technology and the highest quality standards, made in Germany. In addition to its delicate design, consisting of clear lines and rounded shapes, this exquisite GROHE SPA series is characterised by its wide range of combinable colours and materials, offering maximum individuality. Thanks to the extremely hard-wearing and scratch-resistant PVD coating, the elegant Brushed Warm Sunset surface is optimally protected. Enjoy undisturbed showering comfort and uninterrupted safety thanks to GROHE's precise thermostat technology, which ensures constant water temperatures even in the event of pressure fluctuations. Safety is a top priority for us! The temperature regulator has a protective function that prevents scalding: The water temperature can only be set higher than 38 °C by unlocking the button. A second lock (43 or 46 °C) can be installed as an option. The volume control allows you to determine both the amount of water and the choice between hand or head shower with a slight movement. Customise your mixer tap with the inserts for button actuation – you can choose between 48466000 (White Attica Caesarstone) or 48467000 (Vanilla Noir Caesarstone). The corresponding GROHE Rapid SmartBox concealed body (35600000 or 35604000) is not included in the scope of delivery. GROHE Atrio Private Collection – for a personal touch in the bathroom.
Product main features
- set for final installation for
- GROHE Rapido SmartBox 35 600/35 604
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE Long-Life finish
- wall escutcheon with GROHE FastFixation(covered escutcheon- and shaft sealing, covered fixing)
- metal escutcheon, retroactively 6° adjustable
- printed head and hand shower symbol
- GROHE SafeStop safety button at 38°C(calibration required)
- GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
- GROHE AquaDimmer, integrated shut off/diverter valve

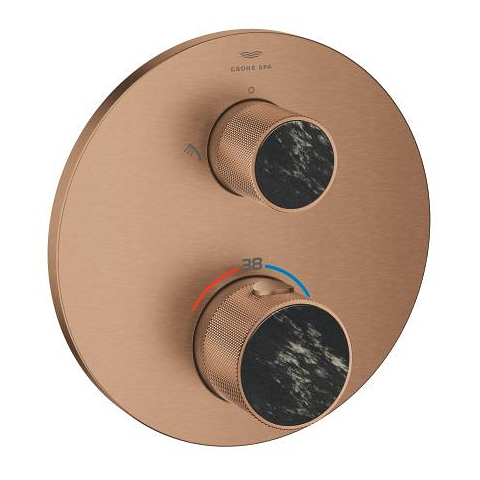

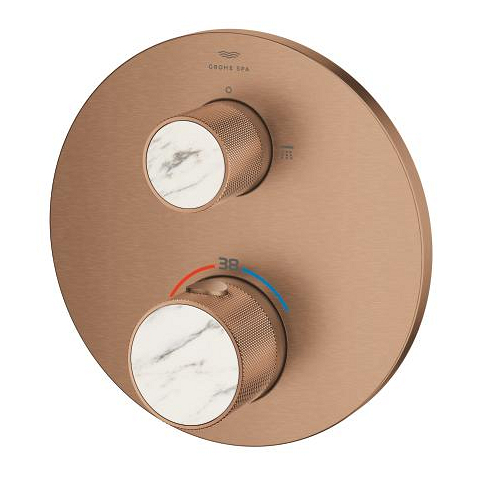

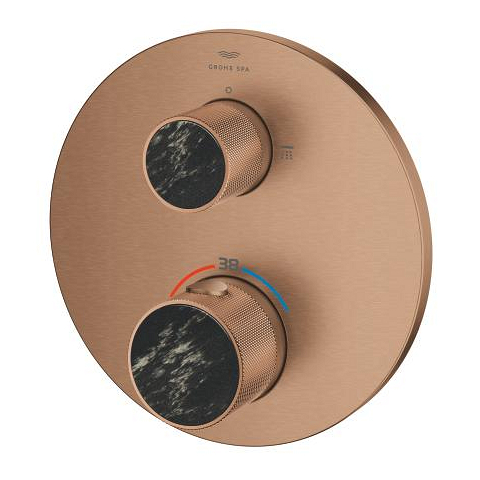

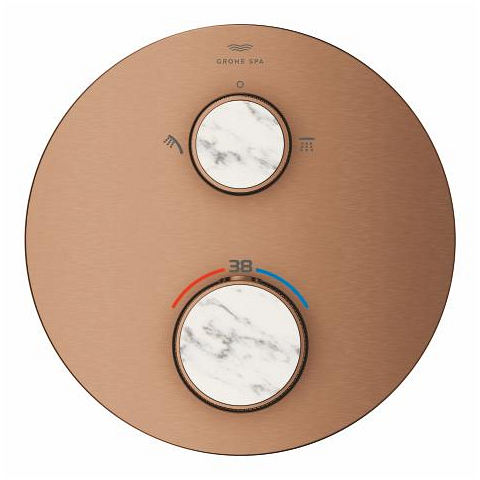

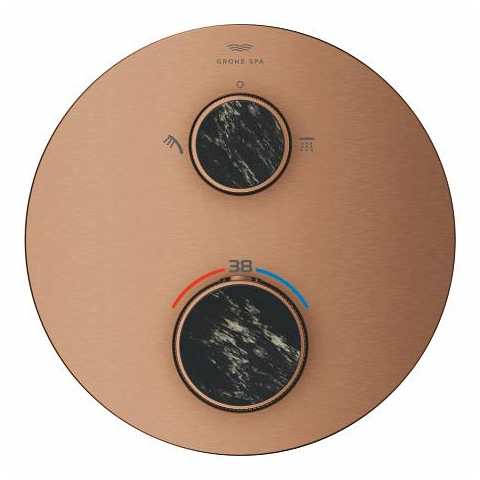

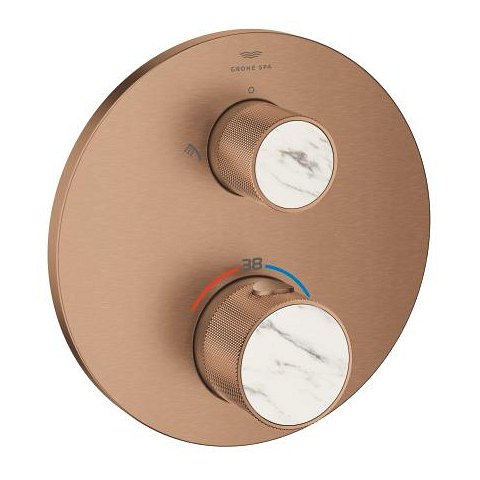

- knobs with metal inlay
- can be combined with 48 466 000 or 48 467 000
- without roughing-in set 35 600/35 604 (please order separately)
- flow performance: outlet B = 27 l/min outlet C = 30 l/min
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Mounting plate | 49080000 |
2 | Handle | 101307DL00 |
2.1 | Shield for cross handle | 101308DL00 |
3 | escutcheon | 49246DL0 |
4 | Handle | 101301DL00 |
4.1 | Shield for cross handle | 101277DL00 |
5 | Aquadimmer | 49084000 |
6 | Thermostatic compact cartridge 3/4" | 49028000 |
7 | Non-return valve | 49085000 |
8 | Sealing washer | 48360000 |
9 | GROHE TurboStat cartridge 3/4" | 49003000* |
10 | Service stops | 1405300M* |
11 | Socket Spanner | 49059000* |
12 | Backflow protection combination (DIN-EN1717) | 14055000* |
13 | Universal extension set 2-handle thermostats, 25 mm | 14058000* |
