GROHE QuickFix
Precision Flow Thermostatic shower mixer 1/2″

The GROHE Precision Flow thermostatic shower set for low pressure offers the latest eco-friendly and safety features for an instant bathroom upgrade
The GROHE Precision Flow shower set is the application of innovative tech to your safety and convenience in the shower. The set includes the GROHE Precision Flow thermostatic shower mixer, a Vitalio Start 110 hand shower, a 600mm rail and a 1500mm hose. The mixer’s GROHE thermostat technology ensures a constant supply of water at the perfect temperature with no unpleasant fluctuations. The GROHE Water Saving function reduces water and energy consumption – perfect in combination with the hand shower. It’s also family-friendly, as the GROHE SafeStop override button is set at 38°C to prevent children in particular from unintentionally turning up the water temperature too high. The optional GROHE SafeStop Plus temperature limiter can be set to 43°C for an extra level of safety. And in case the cold water supply completely fails, an automatic safety shutdown reduces the water flow to a minimum. The 110mm hand shower delivers the soothing Rain spray to gently enclose you in a soft but steady flow, as the GROHE DreamSpray technology matches the flow of water from each nozzle, for a uniform spray pattern. It’s water efficient too, with the flow limiter that significantly reduces water consumption without compromising on performance. GROHE SpeedClean enables you to brush the nozzles free of limescale with just a finger. The ShockProof silicone ring protects the hand shower itself, or the shower tray or bathtub, from damage if it’s accidentally dropped. The sturdy hose is built to revel in hard work and can withstand water pressure up to 5 bar, tension up to 50kg and heat up to 70°C. The rail comes with a gliding element and swivel holder, so adjusting the height and angle of the shower is super easy. The upper bracket is also variable in height, meaning it can be fitted to existing drill holes. With the dazzling but hard-wearing GROHE Long-Life finish, this set will stay looking pristine for years to come. A minimum of 0.5 bar of pressure is recommended. No tools required – the QuickFix promise means installation is surprisingly easy! Thanks to the GROHE QuickSpanner the mixer can be mounted with no need for further tools. The shower rail can be screwed or, for an even more convenient solution, glued! All you need is 2 x GROHE QuickGlue Set S (41247000, sold separately). The holding force is max. 20kg! If you still need some guidance, watch our QuickVideo or have a look at the QuickGuide.
Product main features
- with shower rail set for low pressure 1 spray (Rain)
- Consisting of:
- Precision Flow thermostatic shower mixer 1/2“
- Vitalio Start 110 shower rail set for low pressure, 600 mm (26 946 + 27 724)
- shower hose 1500 mm for low pressure
- min. recommended pressure 0.5 bar to comply with EN1111
- suitable for screwing (including screws and dowels) or gluing (GROHE QuickGlue S 41 247 000 sold separately - 2 x needed)
- holding force shower rail: max. 20 kg
- the specified holding capacity is valid for static (slowly applied) load and intended use only
- 5 color packaging
- QuickSpanner included
- Consumer edition
Technical Product Information

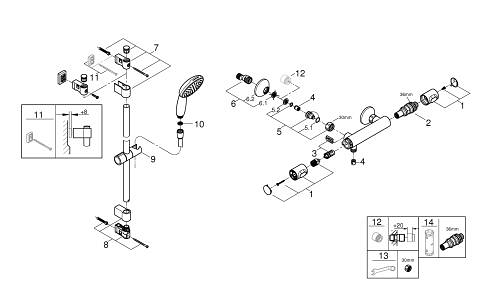

CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Temperature control handle | 49178000 |
2 | Thermostatic compact cartridge 1/2" | 49175000 |
3 | Headpart 1/2" | 49174000 |
4 | Non-return valve | 08565000 |
5 | union connection | 49179000 |
5.1 | O-Ring Ø17 x Ø2 | 0305500M |
5.2 | Filter | 0726400M |
6 | S-union | 12075000 |
6.1 | Sealing washer | 0138600M |
6.2 | Escutcheon | 0221000M |
7 | Outlet shower holder | 48607IK0 |
8 | Outlet shower holder | 48608IK0 |
9 | Sliding piece | 27723001 |
10 | Strainer | 0700200M |
11 | Spacer | 48606001* |
12 | Extension 3/4", 20 mm | 0713000M* |
13 | Special Spanner | 19377000* |
14 | Socket Spanner | 49059000* |
