Euphoria SmartControl System 310 Duo Shower system with thermostat for wall mounting

Product Number

26507000

EAN

4005176457586

Colour

Chrome

£ 1,348.42

RRP incl. VAT

Download specification

The GROHE Euphoria SmartControl 310 Shower system – perfect proportions conceal premium performance and control

Imagine a shower that puts you in complete control! Where you have a choice of luxurious spray patterns in a space designed to be truly comfortable and effortlessly stylish. Welcome to the GROHE Euphoria SmartControl 310 Shower system! The innovative GROHE SmartControl technology allows you to choose your showering experience with ease. At the push-turn of a button you can switch between and/or combine the head and hand shower as well as select the perfect spray pattern and water volume . It’s also easy to save water simply by turning the volume from full flow to water-saving. The 310mm swivel head shower comes with two spray options: the GROHE PureRain spray, soft and enveloping like gentle rain, plus the GROHE ActiveRain spray that is gloriously stimulating and powerful enough for rinsing out shampoo. The 110mm hand shower offers you a choice of three different spray patterns – the soothing Rain, the water-saving SmartRain and the invigorating Massage spray. GROHE DreamSpray ensures that the flow from each and every nozzle will be even, no matter which spray you choose. SpeedClean silicone nozzles are designed to brush free of limescale with a simple wipe. The GROHE TurboStat technology guarantees a constant water temperature throughout your shower. GROHE SafeStop lets you set a maximum temperature of 38˚C, while SafeStop Plus offers a further optional limit of 43˚ C. For added safety GROHE CoolTouch ensures that the exposed thermostat will never be too hot to touch. For added comfort it incorporates an EasyReach tray for keeping toiletries close to hand. The durable, easy-care GROHE Long-Life finish keeps the whole set looking immaculate for a lifetime. And GROHE FastFixation makes the installation swift and easy: the upper bracket can be adjusted to reuse existing drilling holes. GROHE Euphoria SmartControl – enjoy an intuitive, pleasurable shower in comfort and style, made in Germany.

Product main features

Consisting of:
horizontal 450 mm shower arm
upper bracket adjustable for minimal adaption to existing drilling holes
exposed SmartControl thermostat
allows change between:
head shower Rainshower SmartActive 310
2 spray patterns:
GROHE PureRain, ActiveRain
maximum flow rate (at 3 bar): 20 l/min
hand shower Euphoria 110 Massage, spray plate white (27 221 001)
3 spray patterns:
Rain, SmartRain, Massage
maximum flow rate (at 3 bar): 16 l/min
adjustable height via gliding element
Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388 000)
GROHE DreamSpray perfect spray pattern
GROHE Long-Life finish
GROHE CoolTouch prevents scalding on hot surfaces
GROHE TurboStat compact cartridge with wax thermoelement
GROHE ProGrip with knurl structure
GROHE SafeStop safety button at 38°C
GROHE SafeStop Plus optional temperature limiter at 43°C included
GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow
integrated GROHE EasyReach shower tray
SpeedClean anti-limescale system
Inner WaterGuide for a longer life
TwistStop preventing the hose from twisting
suitable for instantaneous heaters from 18 kW/h
minimum flow rate 7 l/min.

Technical Product Information

CAD Data

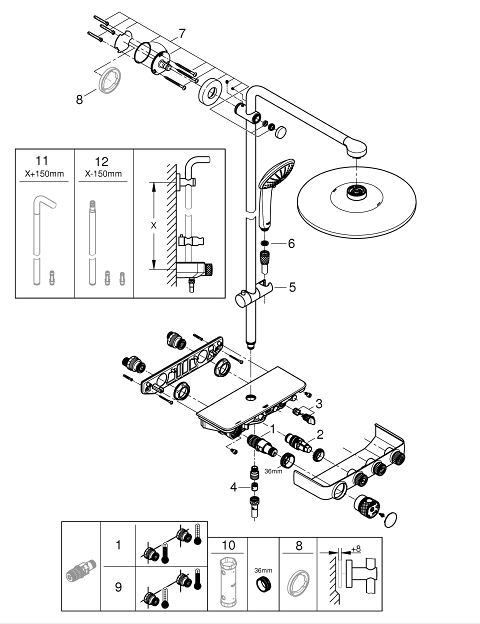

Pos.-nr.	Prod. description	Order-nr.
* Optional accessories
1	Thermostatic compact cartridge 1/2"	47439000
2	Cartridge	48297000
3	Non-return valve	49069000
4	Non-return valve	08565000
5	Sliding piece	48177000
6	Strainer	0700200M
7	Outlet shower holder	48279000
8	Spacer	27180000*
9	GROHE TurboStat cartridge 1/2"	47175000*
10	Socket Spanner	49059000*
11	Shower system pipe for retrofitting	48497000*
12	Shower system pipe for retrofitting	48498000*
