GROHE SPA

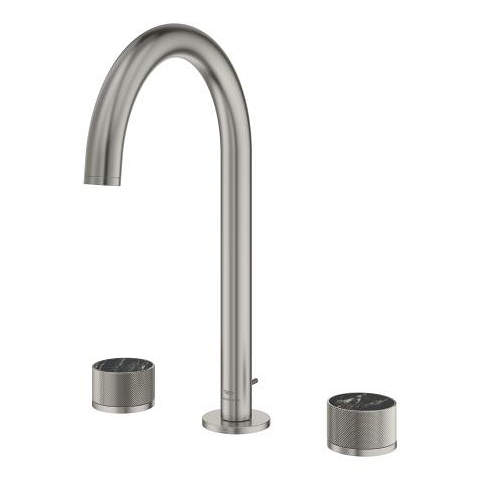

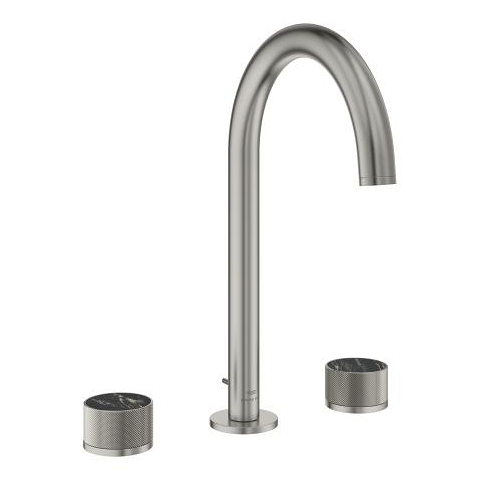

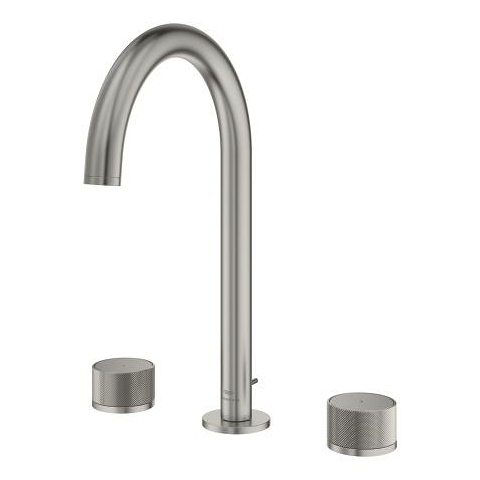

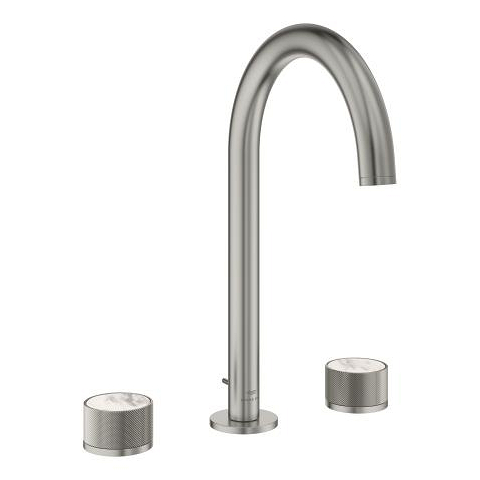

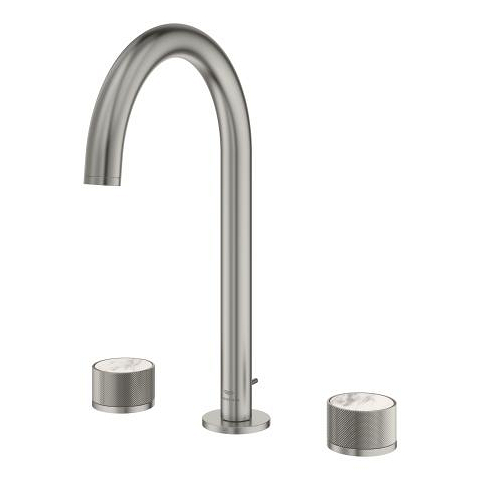

Atrio Private Collection Three-hole basin mixer 1/2″ L-Size
With the GROHE Atrio Private Collection 3-hole basin mixer in L-size in modern satin steel, you can give your bathroom a very personal touch by customising the control elements
Immerse yourself in a world of elegance and beauty with the GROHE Atrio Private Collection, part of our exclusive SPA portfolio – combining timeless aesthetics, the latest technology and the exceptional quality, manufactured in Germany. The surface in chic satin steel is hard-wearing and easy to clean. Discover the inner values of this GROHE Atrio Private Collection 3-hole basin mixer in L-size: first-class ceramic components enable smooth, stepless operation and limit water consumption to 5 l/min (at 3 bar) in an environmentally friendly way – without sacrificing performance. With a convenient installation height of 291mm, it provides plenty of space between the spout and washbasin. This model offers you maximum flexibility thanks to the swivel spout (150° or 360°), which can also be fixed if required. No need to get your hands wet anymore – simply use the small rod on the back of the tap to operate the convenient pop-up drain for easy opening and closing. You have the choice of equipping this mixer tap with the following inserts for knob controllers: 48460000 (White Attica Caesarstone) or 48461000 (Vanilla Noir Caesarstone) GROHE Atrio Private Collection – for a personalised touch in the bathroom.
Product main features
- ceramic headparts 1/2", 90°
- GROHE LongLife finish
- GROHE EcoJoy - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
- swivel tubular spout with mousseur and stop limiter
- adjustable swivel area 0° / 150° / 360°
- pop-up waste set 1 1/4"
- pressure-proof, flexible connection hoses between spout and side valves
- knobs with metal inlay
- can be combined with 48 460 000 or 48 461 000
Technical Product Information
CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Shield for cross handle | 101300MS00 |
| 2 | Handle | 101299MS00 |
| 3 | Ceramic headpart, 1/2" | 45882000 |
| 3.1 | O-Ring Ø18,2 x Ø1,7 | 0392400M |
| 4 | Coupling nut 1/2" x 10.5 mm | 1290100M |
| 4.1 | Fibre seal dia. Ø 18,5 x Ø 12 x 2 | 0138900M |
| 5 | Flexible connection hose | 45704000 |
| 6 | Fixing clamp | 6554100M |
| 7 | Pop-up waste set 1 1/4" | 28910MS0 |
| 7.1 | Chrome bath plug | 07182MS0 |
| 7.2 | Eccentric rod | 07052000 |
| 8 | Pop-up rod | 65196MS0 |
| 9 | Biflo spout | 101298MS00 |
| 9.1 | Flow straightener | 48408000 |
| 9.2 | Safety ring | 4826600M |
| 9.3 | Sealing washer | 0128500M |
| 10 | Ceramic headpart, 1/2" | 45883000 |
| 10.1 | O-Ring Ø18,2 x Ø1,7 | 0392400M |
| 11 | Inlays made from White Attica Caesarstone material | 48460000* |
| 12 | Inlays made from Vanilla Noir Caesarstone material | 48461000* |
| 13 | Eccentric rod | 07341000* |
| 14 | Coupling nut 1/2" x 14.5 mm | 1290200M* |
