GROHE SPA

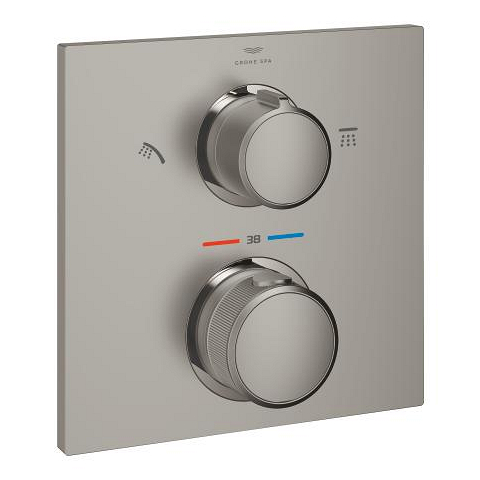

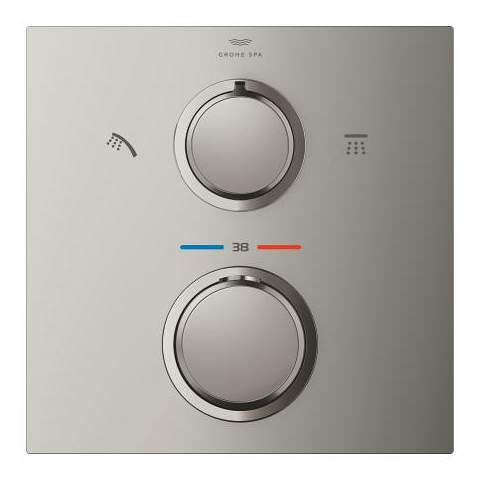

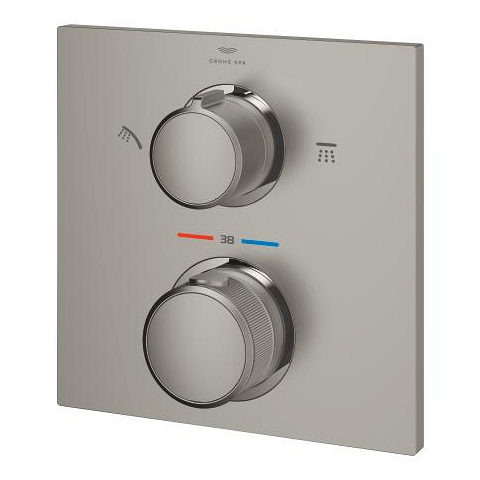

Allure Thermostat for concealed installation with 2-way diverter
Create a sleek, seamless look for your shower with the GROHE Allure shower thermostat in stunning satin steel, and enjoy smart features
Demand the best in function wrapped up in a sleek, appealing form in the GROHE Allure. With a slim, defined profile and organic transitions, Allure’s aesthetics invite interaction. Intuitive control meets incredible precision in this crafted collection where performance and user comfort are both treated as equally essential. Made in Germany, this thermostatic shower mixer trim in a stylish and durable satin steel finish provides the perfect final element for your shower. It is designed for space-saving concealed installation. With the diverter and volume control integrated in one single handle you can switch effortlessly between head and hand shower and simultaneously set the volume. The thermostat technology ensures a constant water flow at the desired temperature with no unpleasant fluctuations. Great for homes with children: the solid metal handle for temperature control has a safety function that automatically stops at 38° C to prevent scalding. You unlock it by pressing the release button, while an optional limiter at 43° C or 46° C adds a second level of protection. And thanks to the wall escutcheon with locking system and covered sealing the installation is swift and easy. GROHE Allure – precision in form and function. This trim set is designed to be installed with the GROHE Rapido Smartbox (35600000/35604000), sold separately. And don’t worry: This combined solution for concealed installation is 100% safe against leakage.
Product main features
- trim set for GROHE Rapido SmartBox (35 600/35 604)
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE Long-Life finish
- wall escutcheon with GROHE FastFixation(covered escutcheon- and shaft sealing, covered fixing)
- metal escutcheon, retroactively 6° adjustable
- printed head and hand shower symbol
- GROHE SafeStop safety button at 38°C(calibration required)
- GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
- GROHE AquaDimmer, integrated shut off/diverter valve
- flow performance: outlet B = 27 l/min outlet C = 30 l/min
- without roughing-in set 35 600/35 604 (please order separately)
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Mounting plate | 49080000 |
2 | Aquadimmer | 49084000 |
3 | Thermostatic compact cartridge 3/4" | 49028000 |
4 | Non-return valve | 49085000 |
5 | Sealing washer | 48360000 |
6 | GROHE TurboStat cartridge 3/4" | 49003000* |
7 | Socket Spanner | 49059000* |
8 | Service stops | 1405300M* |
9 | Universal extension set 2-handle thermostats, 25 mm | 14058000* |
