Eurosmart Cosmopolitan E Infra-red electronic basin mixer with mixing device and adjustable temperature limiter

Design style meets touchless technology – the GROHE Eurosmart CE!
It has never been easier to enjoy washing with this blend of sophisticated style and precise performance! Made in Germany with sleek lines and a minimalistic profile the wall-mounted mixer has a modern appeal and GROHE’s innovative technology takes washing efficiency and convenience to a whole new level. The infrared sensor detects hand movement so water only runs when it’s needed – delivering luxury and saving precious water and energy – which means it’s perfect for the cloakroom at home and in busy public spaces. GROHE EcoJoy also limits water flow to 5.7 l/min without compromising performance. Water temperature is adjusted with a small lever above the spout and can be limited with the use of a small enclosed accessory – saving energy and cutting the risk of scalding. The spout’s broad 170mm projection offers extra user comfort. The scratch-durable GROHE StarLight chrome finish looks dazzling for years to come. With less skin contact, it’s also hygienic and very easy to clean. This advanced mixer's pre-settings are optimised for most ceramic washbasins and personal preferences. Cleaning mode is easily activated by covering the bottom of the sensor with a thumb, which temporarily locks the water flow. Combined with the GROHE Remote Control (36407001), additional settings are available, including automatic hygiene flushing and thermal disinfection. The solid brass body is built to last. This basin mixer comes complete with a Europlug (EN 50075). The set is for installation with the matching GROHE concealed body (36339000), sold separately. GROHE Eurosmart Cosmopolitan E – where superior bathroom style meets luxurious performance.
Product main features
- with infrared sensor for bi-directional communication for monitoring, configuration and servicing
- with transformer 100-230 V AC, 50-60 Hz, 6 V DC
- maximum flow rate (at 3 bar): 8 l/min
- Laminar flow straightener
- chrome escutcheon
- chrome spout
- projection 170 mm
- 7 pre-set programs
- auto flush
- thermal disinfection
- cleaning mode
- additional functions and precise settings by remote control 36 407
- set for final installation for concealed fitting box
- 36 339 001
- CE approved
- noise classification 1 in accordance with DIN4109
Technical Product Information
CAD Data

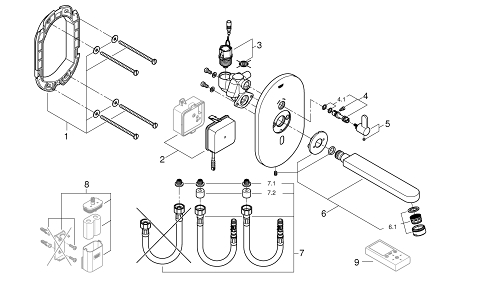

Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Frame | 42419000 |
2 | Switching power supply | 42470000 |
3 | Solenoid valve | 42469000 |
4 | Mixing lever | 42441000 |
4.1 | O-Ring | 4284000M |
5 | Biflo spout | 42420000 |
5.1 | Economy Mousseur | 13951000 |
5.1 | Flow straightener | 13960000 |
6 | Connection hose set | 42417000 |
6.1 | Filter | 4241300M |
6.2 | Non-return valve | 4240400M |
7 | Battery Housing | 42393000* |
8 | Biflo spout | 42418000* |
9 | Remote control | 36407001* |
