discontinued
Avensys Single control DO8 shower mixer 1/2″
Product Number
34041IL0
EAN
4005176224997
Colour
chrome/white
Product main features
- Thermostatic
- suitable for high / low pressure
- concealed brass body & trim set
- factory set max. temperature 41°C
- installation bracket for body
- in masonry / stud walls
- combined flow & temperature control handle
- metal lever
- built-in non return valves
- dirt strainers
- shower outlet 1/2" top or bottom
- reversible body for crossed supplies
- flow limiters for high (>1.0 bar) or unequal pressures
- GROHE Long-Life finish
- recommended pressure 0.1 - 5.0 bar
Technical Product Information
CAD Data

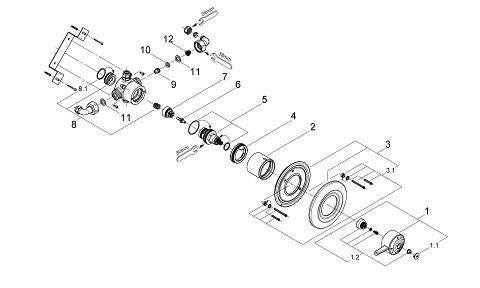

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | lever | 47595IL0 |
| 1.1 | Cover Cap | 00090IL0 |
| 1.2 | Fixing set | 47592000 |
| 2 | Sealing washer | 01239000 |
| 3 | Escutcheon | 46455000 |
| 3.1 | Screw | 0936100M |
| 4 | Stop ring | 47593000 |
| 5 | Control unit | 47600000 |
| 6 | Wax thermo-element | 00798000 |
| 7 | Slider | 07587000 |
| 8 | Thermostat seat | 47594000 |
| 8.1 | O-Ring | 0316900M |
| 9 | Non-return valve | 0654400M |
| 10 | Flow limiter set | 46428000 |
| 11 | Sealing washer | 0138600M |
| 12 | Strainer | 0699500M |
