GROHE SPA

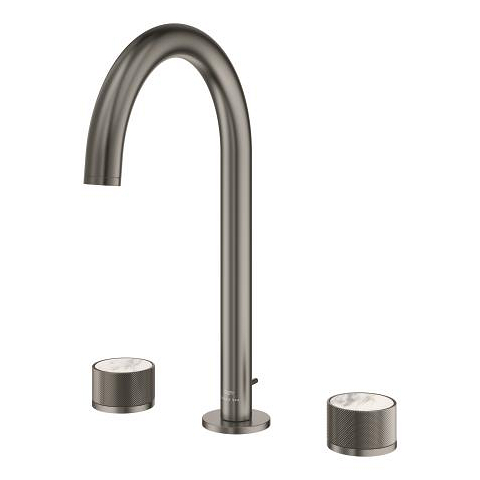

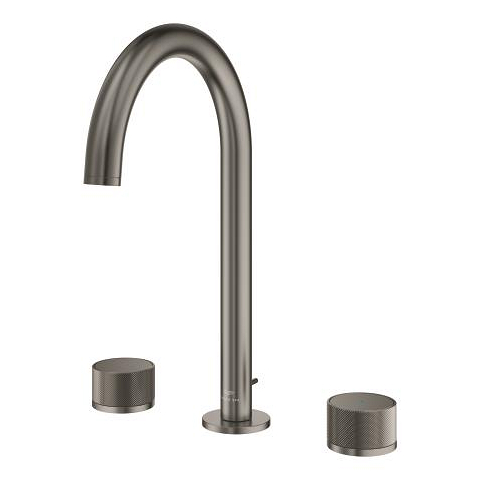

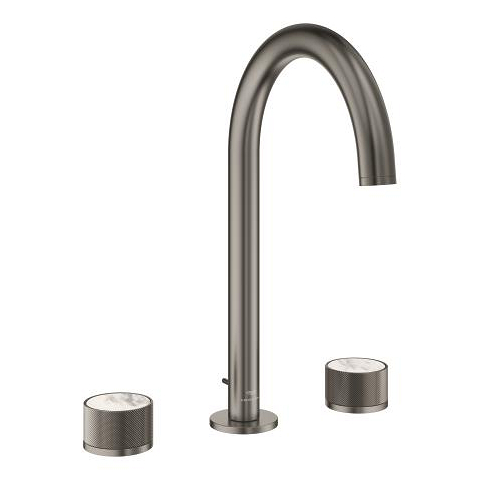

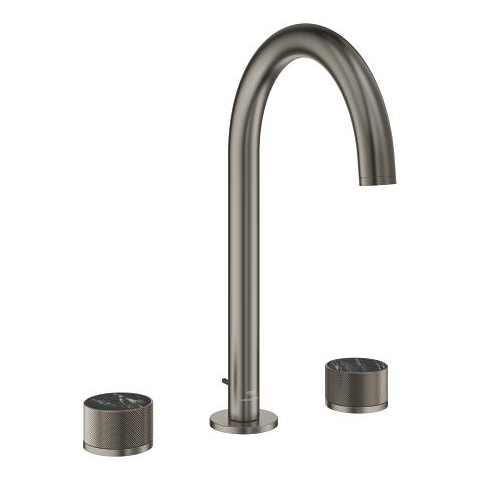

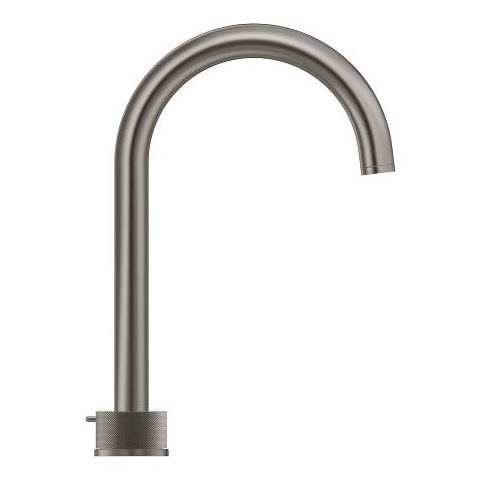

Atrio Private Collection Three-hole basin mixer 1/2″ L-Size
With the GROHE Atrio Private Collection 3-hole basin mixer in L-size in modern satin graphite, you can give your bathroom a very personal touch by customising the control elements.
The GROHE Atrio Private Collection is a perfect combination of grace, modern technology and exceptional quality, manufactured in Germany. Its delicate design of clear lines and rounded shapes can also be individually combined in a wide range of colours and materials. The elegant satin graphite finish not only ensures a high-quality look, but also makes the product particularly long-lasting and easy to clean. With this GROHE Atrio Private Collection 3-hole basin mixer in L-size, you not only get an aesthetically pleasing design, but also durable ceramic tops for smooth and stepless operation. In addition, water consumption is limited to an eco-conscious 5 l/min (at 3 bar) without compromising on performance. With a convenient installation height of 291mm, it offers plenty of space between the spout and washbasin. For greater flexibility, the delicate curved spout rotates (150° or 360°), but can also be locked in place if required. With the small rod on the back of the tap, the convenient pop-up waste can be easily opened and closed. Choose from one of two inserts for the knob controllers of your new mixer tap: 48460000 (White Attica Caesarstone) or 48461000 (Vanilla Noir Caesarstone). GROHE Atrio Private Collection – for a personalised touch in the bathroom.
Product main features
- ceramic headparts 1/2", 90°
- GROHE LongLife finish
- GROHE EcoJoy - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
- swivel tubular spout with mousseur and stop limiter
- adjustable swivel area 0° / 150° / 360°
- pop-up waste set 1 1/4"
- pressure-proof, flexible connection hoses between spout and side valves
- knobs with metal inlay
- can be combined with 48 460 000 or 48 461 000
Technical Product Information
CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Shield for cross handle | 101300MG00 |
| 2 | Handle | 101299MG00 |
| 3 | Ceramic headpart, 1/2" | 45882000 |
| 3.1 | O-Ring Ø18,2 x Ø1,7 | 0392400M |
| 4 | Coupling nut 1/2" x 10.5 mm | 1290100M |
| 4.1 | Fibre seal dia. Ø 18,5 x Ø 12 x 2 | 0138900M |
| 5 | Flexible connection hose | 45704000 |
| 6 | Fixing clamp | 6554100M |
| 7 | Pop-up waste set 1 1/4" | 28910MG0 |
| 7.1 | Chrome bath plug | 07182MG0 |
| 7.2 | Eccentric rod | 07052000 |
| 8 | Pop-up rod | 65196MG0 |
| 9 | Biflo spout | 101298MG00 |
| 9.1 | Flow straightener | 48408000 |
| 9.2 | Safety ring | 4826600M |
| 9.3 | Sealing washer | 0128500M |
| 10 | Ceramic headpart, 1/2" | 45883000 |
| 10.1 | O-Ring Ø18,2 x Ø1,7 | 0392400M |
| 11 | Inlays made from White Attica Caesarstone material | 48460000* |
| 12 | Inlays made from Vanilla Noir Caesarstone material | 48461000* |
| 13 | Eccentric rod | 07341000* |
| 14 | Coupling nut 1/2" x 14.5 mm | 1290200M* |
