Rapid SLX Element for WC, 1.13 m installation height with integrated socket

Product Number
39602000
EAN
4005176527555
Rating

Product Description

The GROHE Rapid SLX installation system for wall-hung toilets – a vision of the future!

Modern bathroom harmony! The robust GROHE Rapid SLX installation system is the perfect partner for a wall-hung WC – the quick and easy way to create the ultimate bathroom! The Rapid SLX also supports GROHE’s elegant and stylish new range of extra slim flush plates, which simply plug onto the drain valves using our EasyConnect system. Extra strong and versatile, Rapid SLX has an attractive powder-coated steel frame and guarantees understated performance you can trust – it's TÜV approved for a load of 400kg! Supplied with all the fixings you need, GROHE QuickFix makes installation (height 1.13 m) logical and fast, but also ready for any future changes you may wish to make. The unique flow manager means you can easily reduce the water flow so it can also be used with any new toilet, including rimless WCs, which use water under less pressure. The Plug & Play design includes an electric socket and water connection so you can easily add a shower toilet – the stylish GROHE Sensia Arena would look fantastic. And any upgrade is easy to make because the generous Direct Access Door gives you plenty of room to work. The GROHE Whisper technology of the dual-flush cistern helps stop sound travelling through walls – so you can enjoy peace and quiet. And GROHE EcoJoy cuts your water usage by up to 50%. Simply select a flush volume of either 3l or 6l and, if you prefer, stop a full flush before it’s over. It is also fully insulated against condensation. For on-the-wall installation order the dedicated wall brackets (38558 00M). GROHE Rapid SLX – strength and premium performance for a cool and contemporary bathroom design!

  • with flushing cistern GD 2 , 6 l - 2.6 l
  • with integrated socket for shower toilets (power)
  • ready for shower toilets (water)
  • small revision shaft for small flush plates
  • for on-the-wall installations or studded walls
  • powder coated steel frame, self-supporting
  • for dry-cladding, completely pre-assembled
  • without outlet pipe
  • with fixed connections
  • quick adjustment, lockable
  • fixing material
  • TÜV approved
  • approved for US
  • 2 WC fixing bolts
  • fixing device for ceramic
  • distance of fixing bolts 180/230 mm
  • outlet bend Ø 90 mm
  • depth adjustable
  • reducer Ø 90/110 mm
  • inlet and outlet connecting set
  •
  • flushing cistern GD 2, 3 - 6 l, containing following features:
  • factory set 6 l and 3 l
  • pneumatic discharge valve offering 2 modes of
    operation: dual flush or single flush
  • water supply from right, back or top
  • low noise (group I acc. to
    German Noise Specification)
  • fully insulated against condensation
  • ½" water supply connection including integrated
    angle valve and push fit flexible hose union
  • no tools required for the installation
    of the inspection shaft incl. protection
    during construction phase
  • for vertical use
  •
  • for on-the-wall installation please order wall brackets 38 558 00M (sold separately)
  • including flow manager
  • reduces flow of the flush
  • prevents overspill in rimless toilets
  • easy flow regulation via inspection shaft without removing the valves

Technical Information

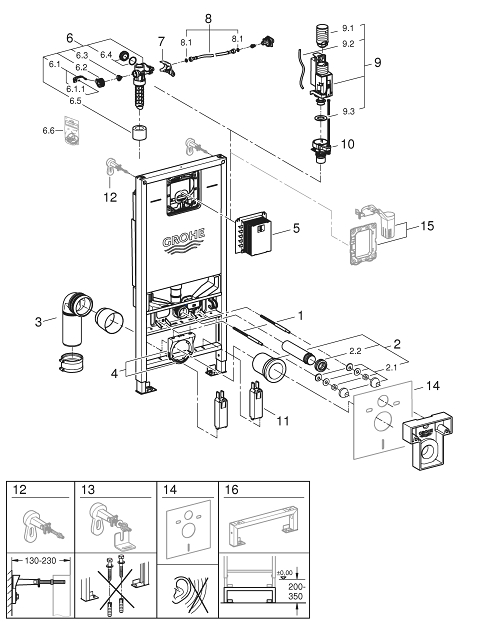

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Threaded bolt 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 PP-outlet bend Ø 90 mm 42327000
4 Support for outlend bend 42243000
5 Revision shaft for small flush plates 40911000
6 filler valve US 42485000
6.1 Lever 43734000
6.1.1 Seal 4377000M
6.2 Valve head 43536000
6.3 Membrane 4375800M
6.4 Screw cap 43735000
6.5 Valve float, 5 pcs. 4379100M
6.6 Dummy plug and escutcheon cap 37125000
6.7 Compression nut 43258000
6.8 Throttle 42356000
6.9 Set of seals 43722000*
7 Support device 42246000
8 Connecting hose 42233000
8.1 Sealing washer 0319100M
9 Dual Flush discharge valve AV1 42320000
9.1 Extension for overflow pipe 42313000
9.2 Pneumatic hose 42319000
9.3 Seal 42310000
10 Valve seat 42593000
11 Accessory 39607000
12 Wall brackets 3855800M*
13 Mounting angle 38733000*
14 Set for noise protection 37131000*
15 Retrofit set 38796000*
16 Rapid SLX Heigth set 200-350MM 38629001*
